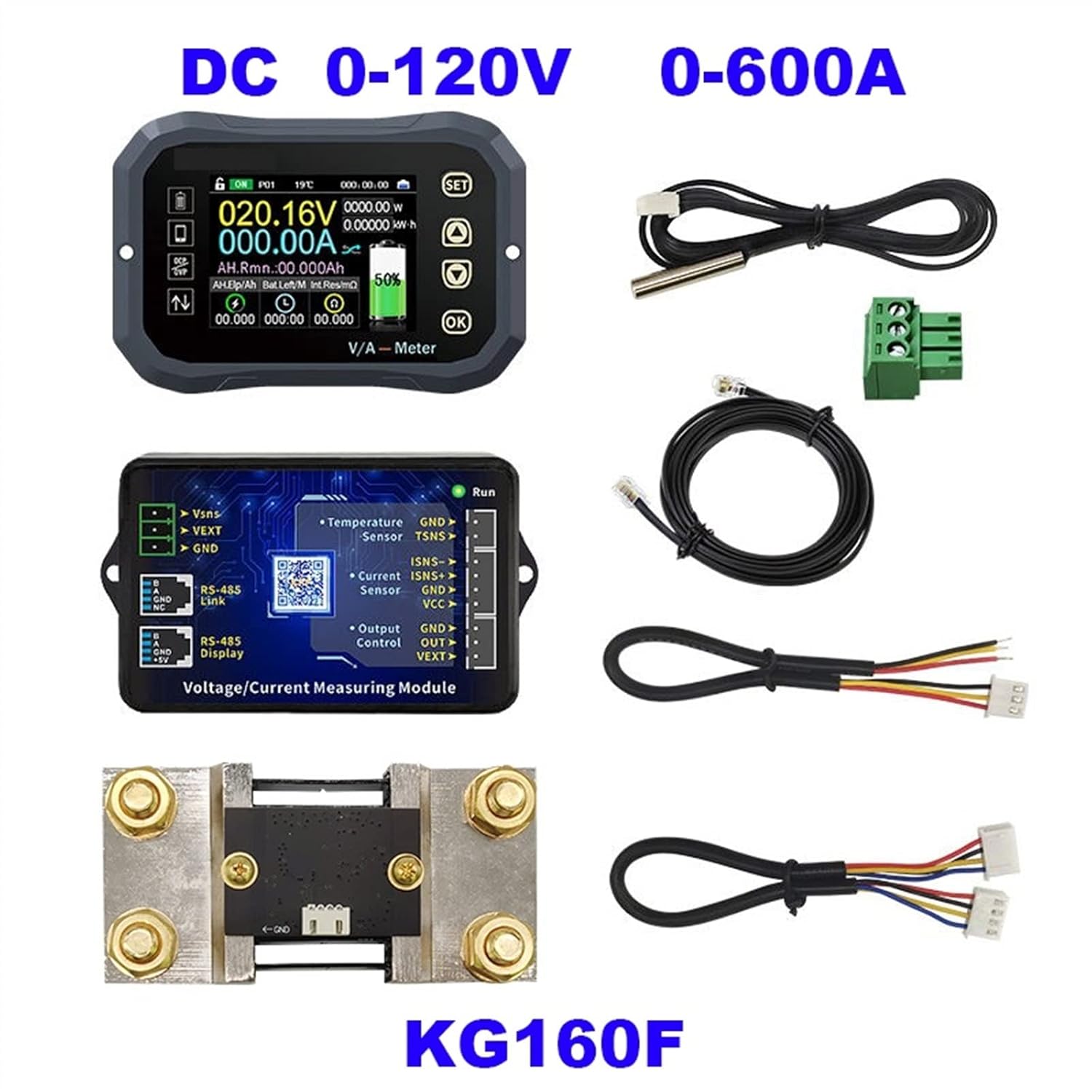

Battery Monitor Bluetooth DC 0-120V 100A 400A 600A Battery Tester Voltage Current VA Battery Coulomb Meter Capacity Indicator(KG160F-0-120V-0-600A)

Model：KG110FCurrent measurement range：0~100ACurrent resolution：0.01AModel：KG140FCurrent measurement range：0~400ACurrent resolution：0.1AModel：KG160FCurrent measurement range：0~600ACurrent resolution：0.1AVoltage measurement range(External power supply)：0-120VVoltage measurement range(Self-powered)：10-120VVoltage resolution：0.01VTemperature measurement range：-20-120℃Capacity display range：0%~100%Power measurement range：0~72KWPower resolution：0.01WAH measurement range：0~9999.99AHCapacity resolution：0.001AHWatt-hour measurement range：0~9999.99kWHWatt-hour accuracy：0.001WHTime measurement range：0~999:59:59STime resolution：1 secondBluetooth communication distance：10mVoltage accuracy：±2%+3 charactersCurrent accuracy：±5%+10 charactersSampling rate：1time / secondMeasuring module power consumption：About 0.4WDisplay module power consumption：About 0.5WOver power protection：0-99999.99WExternal over temperature protection：0-120℃Protection recovery time：0-99sEnter standby time：0-60sDelay time setting：0-99SMailing address：There are 99 P01-P99, P00 is the broadcast address

• ►The product can be set with over-voltage, under-voltage, over-current, over-power, and external over-temperature protection. When the value is out of the protection value range, the output state of the instrument is turned off (need to be used with a relay) to prevent damage to the electrical equipment. The protection recovery time and delay time can be set, which is suitable for various occasions.
• ►The product has added a self-calibration function, and the current and capacity values can still remain accurate after long-time work.
• ►Amp-hour, watt-hour, and time data can be cleared during the measurement process without affecting the next measurement. The voltage and current values can also be fine-tuned to ensure accurate capacity.
